This article focuses on selecting the optimal drawer slides for your custom server chassis enclosure. We’ll explore how the right slides contribute to the functionality, accessibility, and longevity of your chassis, especially when dealing with heavy server equipment or other specialized components. We’ll examine different slide types, including heavy-duty, telescopic, and ball bearing options, and discuss factors like load rating, length, and mounting style. This article is worth reading because it provides specialized knowledge for anyone designing or building a custom server chassis, ensuring your enclosure is equipped with drawer slides that meet your specific needs and provide reliable, long-lasting performance.

1. Why are Drawer Slides Crucial for Custom Server Chassis Enclosures?

In the realm of custom server chassis enclosures, drawer slides play a far more critical role than in typical furniture or cabinetry. They are not just about convenience; they are integral to the chassis’s functionality, accessibility, and the safety of the expensive and often heavy equipment housed within.

Here’s why drawer slides are so crucial for custom server chassis enclosures:

• Accessibility: Server chassis often house servers, networking equipment, or other electronic devices that require regular maintenance, upgrades, or replacement. Drawer slides provide easy and safe access to this equipment without the need to unrack or disassemble the entire chassis.
• Weight Support: Servers and other rack-mounted equipment can be extremely heavy. Drawer slides in a server chassis must be robust enough to support significant weight capacities without bending, breaking, or failing. The load capacity needs to be high.
• Protection: Slides allow for smooth and controlled movement of equipment, minimizing the risk of damage from jarring or dropping during maintenance or installation.
• Ventilation: In some chassis designs, slides can aid in ventilation by allowing equipment to be pulled out for better airflow.
• Space Optimization: In densely packed racks, drawer slides enable efficient use of space by allowing equipment to be accessed without requiring excessive clearance around the chassis.
• Safety: Properly chosen and installed drawer slides enhance the safety of technicians working with the chassis, reducing the risk of injury from lifting heavy equipment or working in awkward positions.

Drawer slides are a critical component that directly impacts the usability, maintainability, and overall effectiveness of a custom server chassis enclosure. The drawer slides need to be heavy-duty.

2. What are the Different Types of Drawer Slides for Server Chassis?

Several types of drawer slides are suitable for use in custom server chassis enclosures, each offering different features and benefits:

• Ball Bearing Slides: These slides utilize ball bearings within the slide mechanism to provide smooth and effortless movement. They are known for their durability, high load capacity, and quiet operation. Ball-bearing slides are an excellent choice for heavy server equipment.
• Telescopic Slides: Also known as linear slides or extending slides, these consist of two or more sections that telescope or slide within each other, allowing for extended travel. Telescopic slides are often used when full extension of the drawer or equipment is required. They are great for accessing the content of the drawer.
• Heavy-Duty Slides: These slides are specifically designed to support heavy loads, often exceeding 100 pounds and sometimes reaching 500 pounds or more. They are constructed from thicker gauge steel and may feature reinforced components. They are ideal for heavy server equipment.
• Side Mount Slides: As the name suggests, these slides are mounted to the sides of the drawer or equipment and the inside walls of the chassis. They are a common and versatile option. You can use a screw to mount the slide.
• Undermount Slides: These slides are mounted beneath the drawer, concealed from view when the drawer is closed. While less common in server chassis, they can be used for lighter-duty applications where aesthetics are a concern.

The choice of drawer slide type depends on factors such as the weight of the equipment, the required extension length, the available space within the chassis, and aesthetic preferences. It is important to select a durable slide.

3. Understanding Load Ratings and Weight Capacity for Server Chassis Slides

Load rating, also known as weight capacity, is one of the most critical factors to consider when choosing drawer slides for a custom server chassis enclosure. It refers to the maximum weight a pair of slides can safely support without failure. The load capacity is important for drawer slides.

Here’s what you need to know about load ratings:

• Static vs. Dynamic Load: Load ratings can be specified as static or dynamic. Static load refers to the weight the slides can hold when the drawer is stationary, while dynamic load refers to the weight they can support while the drawer is in motion. Dynamic load ratings are typically lower than static load ratings.
• Safety Factor: Drawer slide manufacturers typically incorporate a safety factor into their load ratings. However, it’s generally recommended to choose slides with a load rating that exceeds the actual weight of your equipment by a comfortable margin (e.g., 25-50%) to account for variations in weight distribution and potential dynamic forces during movement.
• Cycle Testing: Reputable manufacturers test their drawer slides through thousands of cycles (openings and closings) under load to ensure durability and long-term performance. Look for slides that have undergone rigorous cycle testing. The drawer slides need to be made to last.
• Load Rating per Pair: Load ratings are typically specified for a pair of slides, not for a single slide. Ensure you are using a pair of slides with the appropriate rating for your equipment’s total weight.
• Mounting and Installation: Proper mounting and installation are crucial for achieving the stated load rating. Follow the manufacturer’s instructions carefully.

Choosing drawer slides with an inadequate load rating can lead to slide failure, equipment damage, and potential safety hazards. Always err on the side of caution and select slides with a load rating that comfortably exceeds your needs. The drawer slides need to be high quality.

4. What are Full Extension Slides and Why are They Important for Server Chassis?

Full extension slides are a type of drawer slide that allows the drawer or equipment to be pulled out completely, providing full access to its contents. Unlike partial extension slides that only allow the drawer to open partially, full extension slides enable the drawer to extend beyond the cabinet or chassis opening.

Full extension slides are particularly important for custom server chassis enclosures for several reasons:

• Accessibility: They provide complete and unobstructed access to the entire depth of the server or equipment mounted on the slides. This is crucial for maintenance, upgrades, and component replacement, as technicians often need to reach components located at the rear of the equipment.
• Ease of Maintenance: Full extension allows technicians to work on equipment without having to remove it completely from the chassis, saving time and effort. This also reduces the risk of damage to the device being removed.
• Ventilation: In some cases, pulling equipment out on full extension slides can improve ventilation and aid in cooling during maintenance or troubleshooting.
• Cable Management: Full extension can simplify cable management by providing more space to work with cables at the rear of the equipment.

Full extension slides typically achieve their extended travel through a telescopic design with multiple sections that slide within each other. They are commonly used in server racks, network equipment enclosures, and other applications where complete access to the housed equipment is essential.

5. What are the Benefits of Ball Bearing Slides for Server Chassis?

Ball bearing slides are a popular choice for custom server chassis enclosures due to their numerous advantages:

• Smooth and Quiet Operation: The use of ball bearings within the slide mechanism provides exceptionally smooth and quiet movement, even under heavy loads. This is particularly important in server environments where noise reduction is desired.
• Durability: Ball-bearing slides are typically very durable and can withstand thousands of cycles of opening and closing without significant wear.
• High Load Capacity: Ball-bearing slides are often designed for heavy-duty applications and can support substantial weight, making them suitable for heavy servers and other equipment. They are often made of cold rolled steel.
• Stability: Ball-bearing slides provide excellent stability, minimizing side-to-side movement or wobbling of the drawer or equipment, even when fully extended.
• Longevity: Due to their robust construction and smooth operation, ball-bearing slides tend to have a long lifespan, reducing the need for frequent replacements.
• Variety of Options: Ball-bearing slides are available in a wide range of applications. They come in various lengths, mounting styles, and with features like full extension, and soft close.

Ball-bearing slides are considered a premium option for drawer and equipment slides, offering a combination of smooth operation, durability, and high load capacity that is well-suited for the demands of custom server chassis enclosures. They are ideal to use in the server chassis.

6. Choosing Between Side Mount and Undermount Slides for Your Chassis

When selecting drawer slides for your custom server chassis enclosure, you’ll generally have two main mounting options: side mount and undermount. The best choice depends on the specific design of your chassis and the requirements of your application.

Side Mount Slides:

Mounting: Side mount drawer slides are mounted to the sides of the drawer or equipment and the inside walls of the chassis. They are visible when the drawer is open.

Advantages:

• Typically easier to install than undermount slides.
• Generally, more heavy-duty options are available, making them suitable for heavier loads.
• Often more forgiving of slight imperfections in drawer or chassis construction.

Disadvantages:

• Visible when the drawer is open, which may be less aesthetically pleasing in some applications.
• Require clearance on both sides of the drawer, which can reduce the usable width of the drawer.

Undermount Slides:

Mounting: Undermount slides are mounted beneath the drawer, concealed from view when the drawer is closed.

Advantages:

• Provide a cleaner, more aesthetically pleasing appearance, as the slides are hidden.
• Maximize the usable width of the drawer, as no side clearance is required for the slides.

Disadvantages:

• Can be more challenging to install, requiring precise alignment and often specialized mounting hardware.
• Typically have lower load capacities compared to heavy-duty side mount slides.
• May not be suitable for all chassis designs, particularly those with very heavy equipment.

For most custom server chassis applications, especially those housing heavy servers or equipment, side mount slides are the preferred choice due to their higher load capacities and easier installation. Undermount slides are less common in this context but might be considered for lighter-duty applications where a concealed appearance is desired.

7. What are Telescopic Slides and Their Advantages in Server Chassis?

Telescopic slides, also known as linear motion slides or extending slides, are a type of drawer slide that consists of two or more sections that telescope or slide within each other. This design allows for extended travel, often enabling full extension or even over-extension of the drawer or equipment. Telescopic slides are a great option for your drawer.

Advantages of Telescopic Slides in Server Chassis:

• Full Extension: Telescopic slides can provide full extension, allowing complete access to the contents of the drawer or the rear of the mounted equipment. This is particularly beneficial for maintenance, upgrades, and cable management in server chassis.
• Compact Design: When retracted, telescopic slides occupy a relatively small amount of space, making them suitable for applications where space is limited.
• Smooth and Linear Motion: Telescopic slides are designed to provide smooth and linear motion, ensuring easy and controlled movement of heavy equipment. They utilize ball bearings.
• High Load Capacity: Many telescopic slides, especially those designed for industrial use, have high load capacities, making them suitable for supporting heavy servers and other equipment.
• Versatility: Telescopic slides are available in various lengths, mounting styles, and with different features like locking mechanisms, making them adaptable to a broad range of applications.

Telescopic slides are commonly used in custom server chassis enclosures to provide easy access to rack-mounted equipment. They are also used in other applications, such as industrial machinery, medical equipment, and specialized vehicles, where extended travel and smooth motion are required. They are a versatile option.

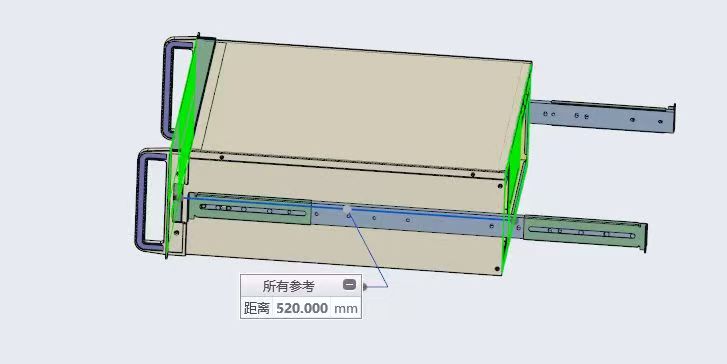

8. How to Select the Right Length and Mounting Style for Your Chassis Drawer Slides?

Choosing the correct length and mounting style for your chassis drawer slides is essential for ensuring proper fit, functionality, and accessibility.

Length:

• Measure the Depth: Measure the depth of your chassis and the equipment you intend to mount on the slides.
• Full Extension: For full extension, select slides with a length that is approximately equal to the depth of your equipment. This will allow the equipment to be fully extended outside the chassis.
• Partial Extension: If full extension is not required, you can choose shorter slides. However, ensure they provide sufficient extension for convenient access.
• bBe mindful of any obstructions within the chassis, such as cross members or cables, that may limit the slide length you can use.

Mounting Style:

• Side Mount: The most common mounting style for server chassis. Ensure your chassis has suitable mounting points on the inside walls. These are easy to mount.
• Undermount: Less common in server chassis but may be used for lighter-duty applications where a concealed appearance is desired. Requires specific mounting provisions on the underside of the equipment.
• Bottom Mount: Similar to undermount, but typically used for heavier loads. Requires a flat, reinforced bottom surface on the equipment.

Other Considerations:

• Travel: The travel or extension length of the slide should be sufficient to provide the desired level of access to your equipment.
• Clearance: Ensure there is enough clearance around the chassis to allow for the full extension of the slides without hitting any obstacles.
• Mounting Hardware: Use the appropriate mounting hardware (screws, brackets, etc.) recommended by the slide manufacturer.

By carefully measuring your chassis and equipment, considering the required extension, and choosing the appropriate mounting style, you can select drawer slides that provide optimal functionality and accessibility for your custom server chassis enclosure.

9. What are some special features to look for in slides for my server chassis?

When choosing drawer slides for a server chassis, several special features can enhance functionality, convenience, and ease of maintenance. Here are some to consider:

• Lock-in/Lock-out: This feature allows the slides to lock in the fully open or fully closed position. Lock-out prevents the drawer from being pulled out, while lock-in keeps the drawer extended, which is useful for servicing equipment.
• Quick Disconnect: This feature allows for quick and easy removal of the drawer or equipment from the slides without tools. This can be helpful for swapping out components or performing maintenance outside of the rack. The slide will disconnect easily.
• Cable Management: Some slides come with integrated cable carriers or cable management arms that help organize and route cables, preventing tangles and ensuring proper airflow.
• Adjustable Mounting Brackets: Slides with adjustable mounting brackets can simplify installation and allow for fine-tuning the position of the equipment within the chassis.
• Tool-less Installation: Some slides offer tool-less mounting options, such as clip-on brackets or quick-release mechanisms, which can speed up installation and simplify maintenance.
• Heavy-Duty Construction: For server applications, look for slides made from high-quality stainless steel or heavy-gauge cold-rolled steel with a durable finish. Ensure they have a high load rating suitable for your server equipment.
• Smooth and Quiet Operation: Ball-bearing slides are generally preferred for server applications due to their smooth, quiet operation and ability to handle heavy loads.
• Corrosion Resistance: If the server chassis will be used in a harsh environment, consider slides with enhanced corrosion resistance, such as those made from stainless steel or with a special protective coating.

These special features can significantly improve the usability and maintainability of your server chassis.

10. How to Ensure Durability and Longevity of Your Server Chassis Drawer Slides?

To ensure the durability and longevity of your custom server chassis drawer slides, consider the following factors:

• Choose the Right Load Rating: Select slides with a load rating that comfortably exceeds the weight of your equipment. Overloading slides can lead to premature wear, bending, or failure.
• Proper Installation: Follow the manufacturer’s installation instructions carefully. Use the correct mounting hardware and ensure the slides are properly aligned and securely fastened. Improper installation can put undue stress on the slides and lead to premature wear. Use the correct screw to mount the slides.
• Regular Maintenance: Periodically inspect the slides for signs of wear, damage, or loose hardware. Clean the slides to remove dust and debris that can interfere with smooth operation. Lubricate the slides according to the manufacturer’s recommendations.
• Avoid Slamming: Resist the temptation to slam drawers or equipment shut. This can put excessive stress on the slides and lead to damage over time. Encourage users to open and close drawers gently. Do not slam the drawer.
• Environmental Considerations: If your chassis will be used in a harsh environment (e.g., high humidity, extreme temperatures, corrosive substances), choose slides that are specifically designed to withstand those conditions. Stainless steel or specially coated slides may be necessary.
• Quality Materials: Opt for slides made from high-quality materials, such as heavy-gauge steel or stainless steel. Look for slides with a durable finish that resists scratches and corrosion.
• Reputable Brand: Choose drawer slides from reputable manufacturers with a proven track record of producing reliable and long-lasting products. Accuride is a popular brand in the industry.

By selecting the right slides for your application, installing them correctly, and performing regular maintenance, you can significantly extend the life of your drawer slides and ensure the smooth and reliable operation of your custom server chassis enclosure.

11. Summary

Here are the 10 most important things to remember about drawer slides for custom server chassis enclosures:

1. Drawer slides are crucial for accessibility, weight support, protection, ventilation, and space optimization in custom server chassis enclosures.
2. Common types of drawer slides for server chassis include ball-bearing slides, telescopic slides, and heavy-duty slides.
3. Load rating is critical; choose slides with a capacity that comfortably exceeds the weight of your equipment, considering both static and dynamic loads.
4. Full extension slides provide complete access to equipment, simplifying maintenance and upgrades. They are ideal for server chassis.
5. Ball-bearing slides offer smooth and quiet operation, high load capacity, durability, and stability.
6. Side mount slides are generally preferred for server chassis due to their higher load capacities and easier installation, while undermount slides are less common.
7. Telescopic slides provide extended travel, often with full extension, and are ideal for maximizing accessibility in server chassis.
8. Select the correct slide length based on your chassis depth and desired extension, and choose the appropriate mounting style (side, undermount, or bottom) for your chassis design.
9. Special features to consider for server chassis slides include lock-in/lock-out, quick disconnect, cable management, adjustable mounting brackets, tool-less installation, heavy-duty construction, and corrosion resistance.
10. Ensure drawer slide durability by choosing the right load rating, proper installation, regular maintenance, avoiding slamming, considering environmental factors, using quality materials, and selecting a reputable brand.

By carefully considering these factors and selecting the appropriate drawer slides for your custom server chassis enclosure, you can ensure optimal functionality, accessibility, and longevity for your valuable equipment. You will be able to build a great custom chassis.
