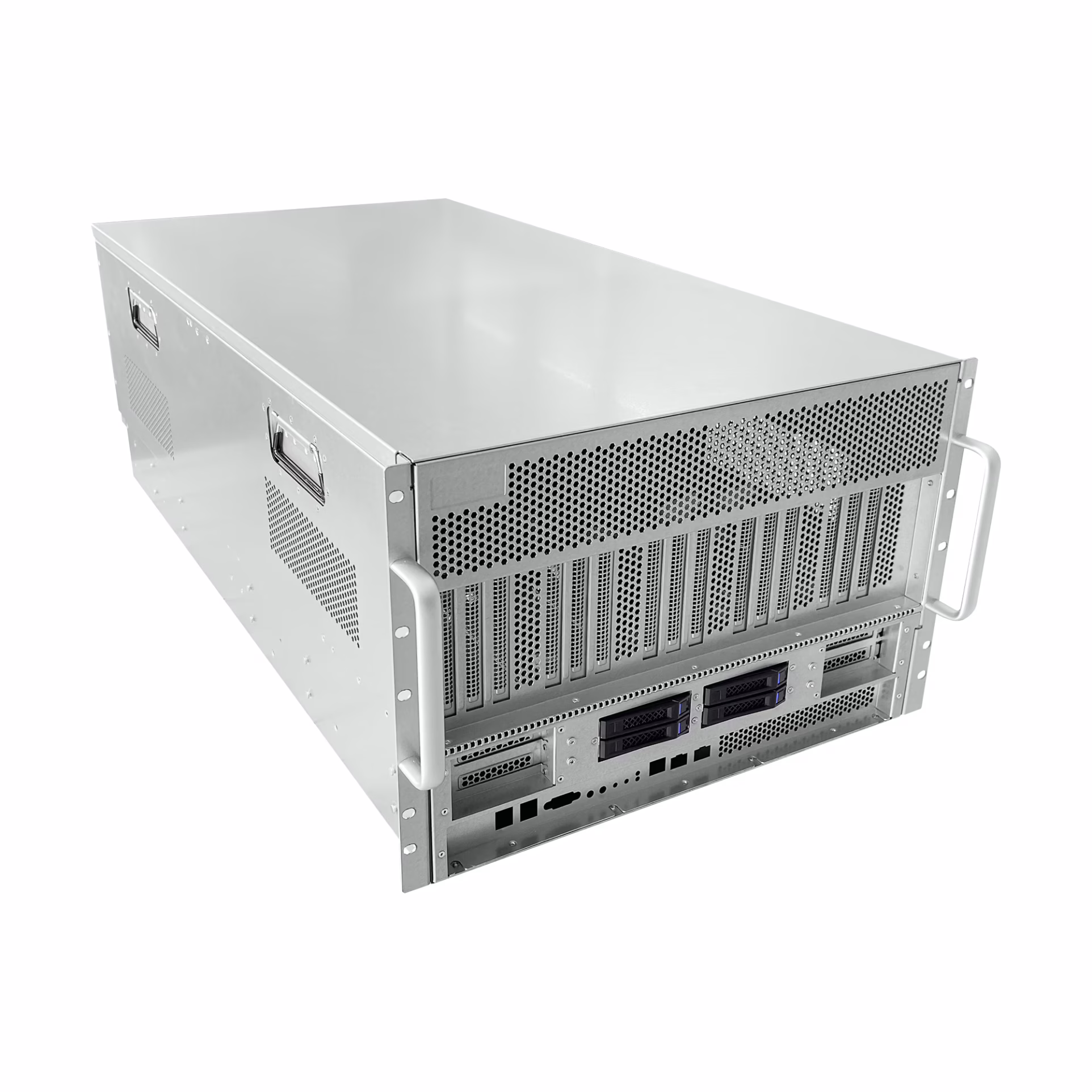

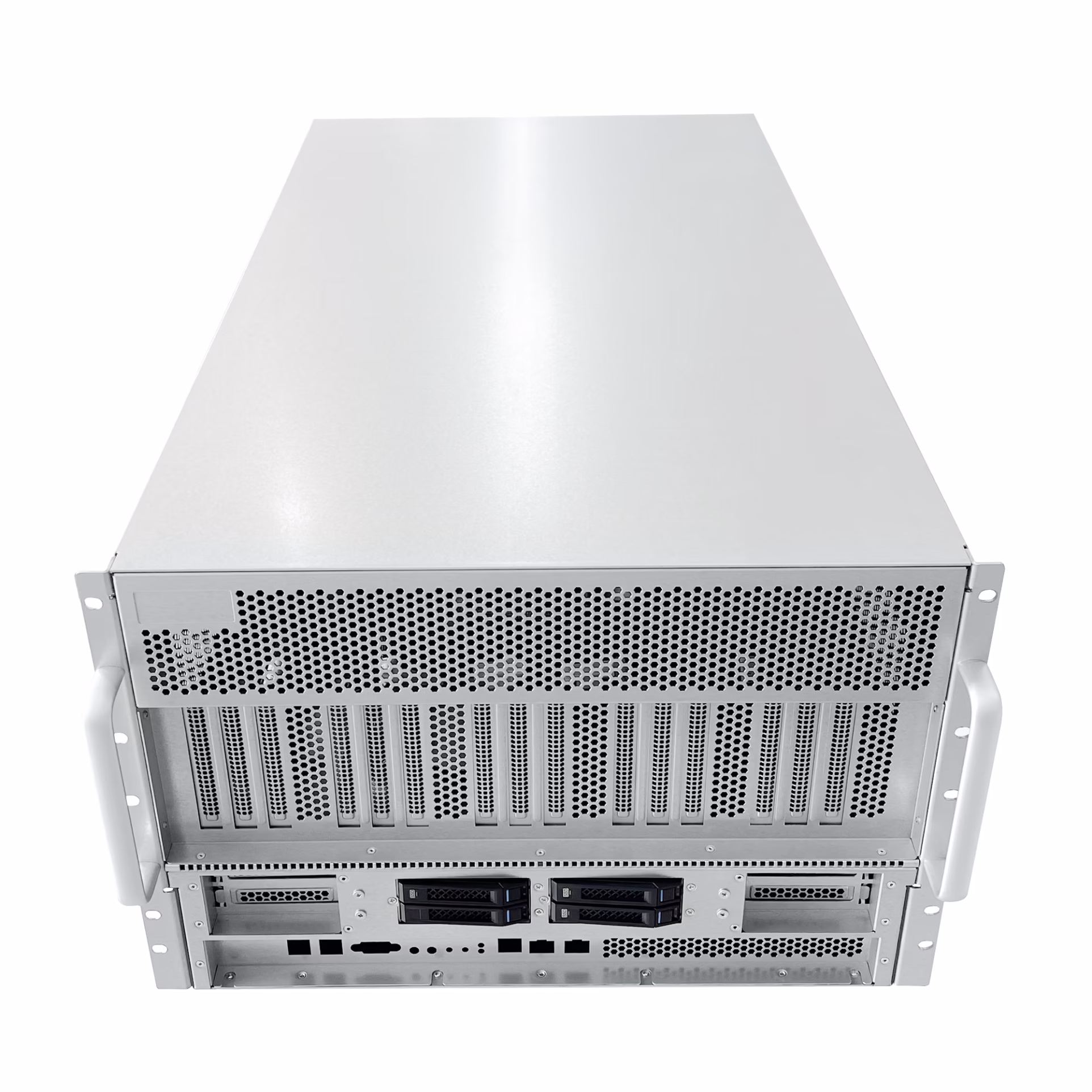

High-Performance 7U 10-GPU Server Chassis -OCG7870-10H4-R

Massive GPU Capacity – Supports up to 10 NVIDIA RTX 4090 GPUs, delivering extreme parallel processing power for AI, deep learning, scientific computing, and rendering tasks.
Versatile Motherboard Compatibility – Compatible with EEB, CEB, ATX, and Micro ATX form factors, including AsrockROME2D32GM-2T and AsrockGENOA2D24G-2L-R101 server boards.

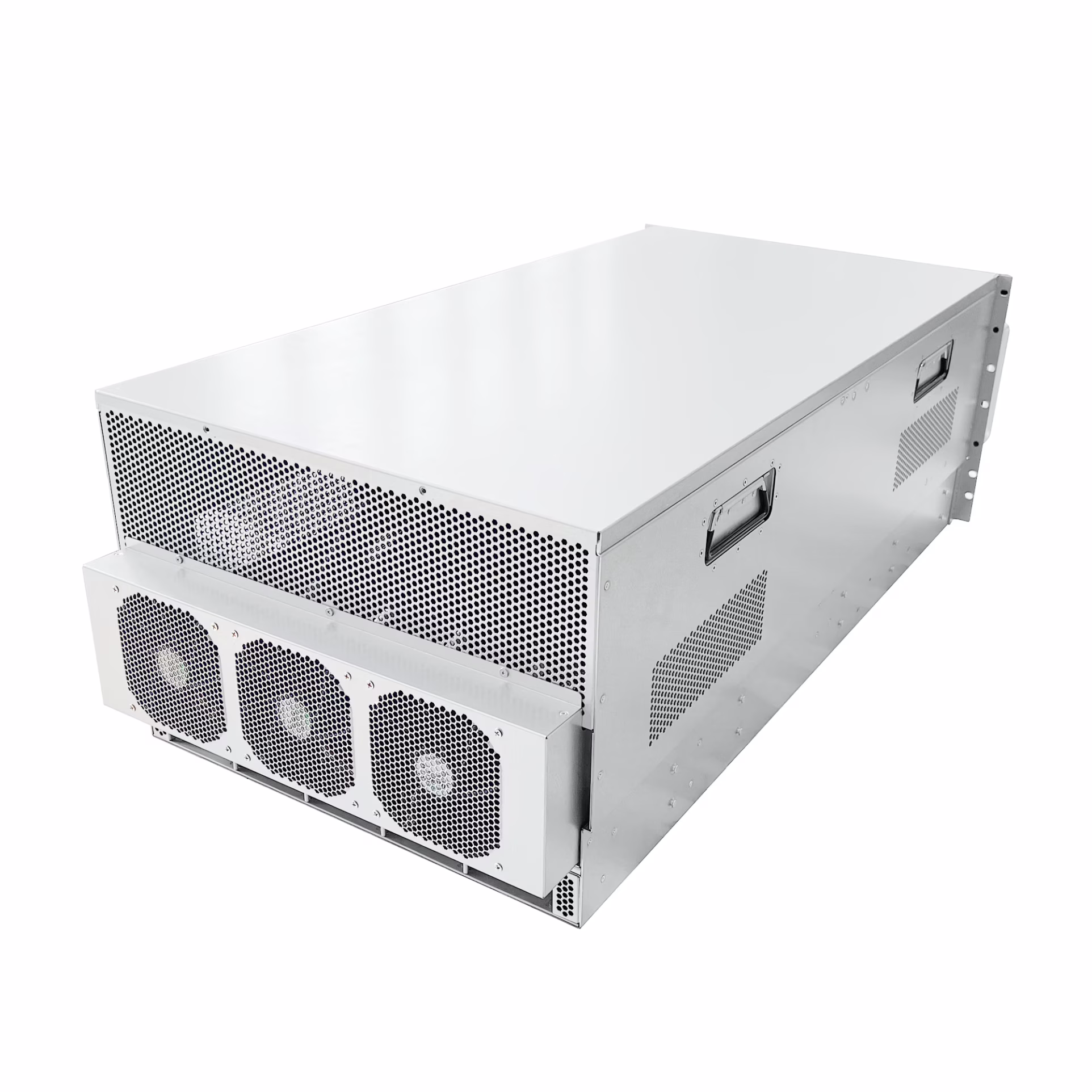

Optimized Cooling System – Equipped with 8×8038 center fans and 3×12038 rear fans for exceptional airflow; optional configuration with 8×8056 center fans and 5×8038 rear fans for enhanced thermal management.

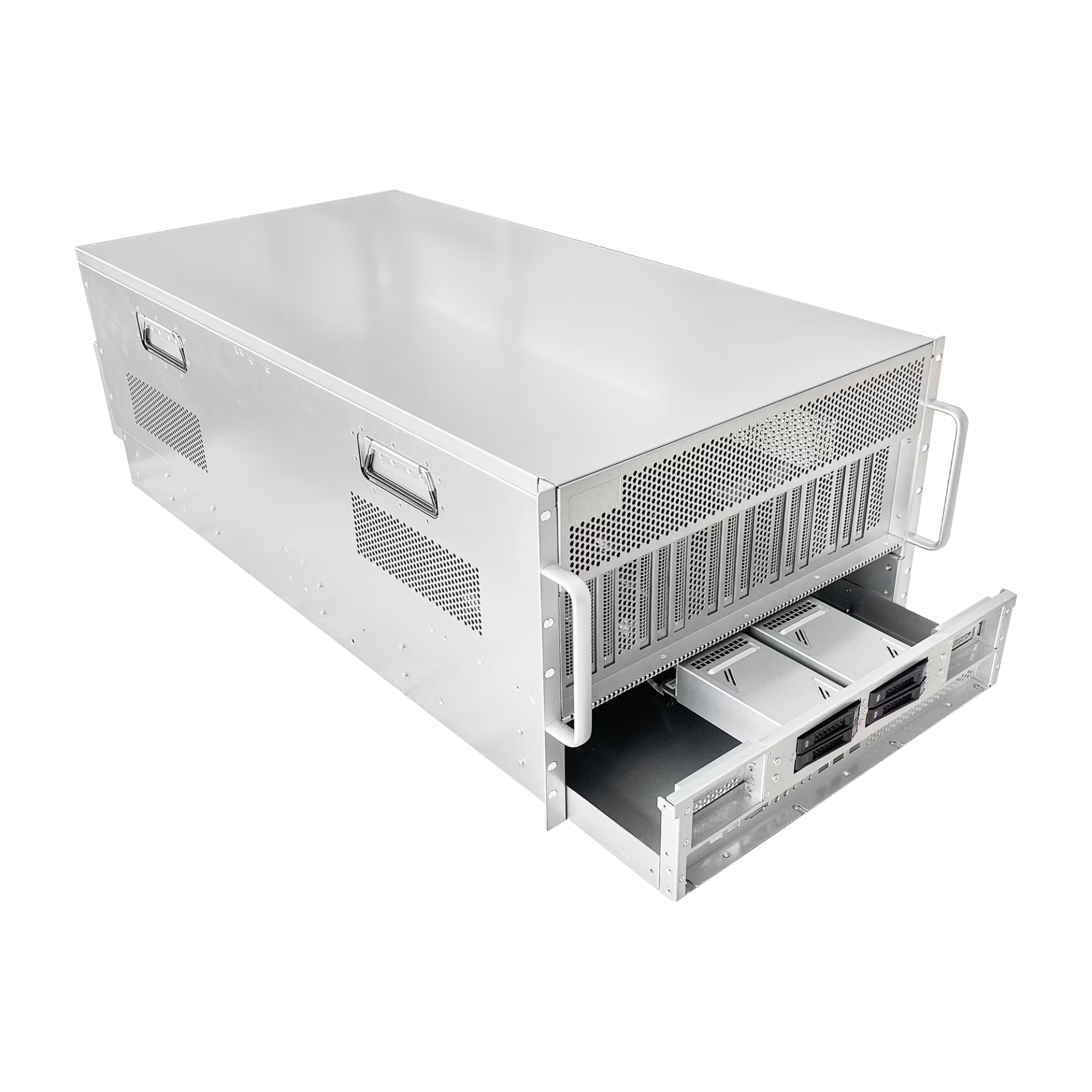

High-Density Storage Support – The front panel accommodates four 2.5-inch SAS/SATA direct-plug or hot-plug hard drives for flexible storage expansion.
Redundant Power Supply Options – Supports CRPS redundant PSU configurations (4+1, 3+2, 2+2, 3+1) for maximum uptime and reliability.

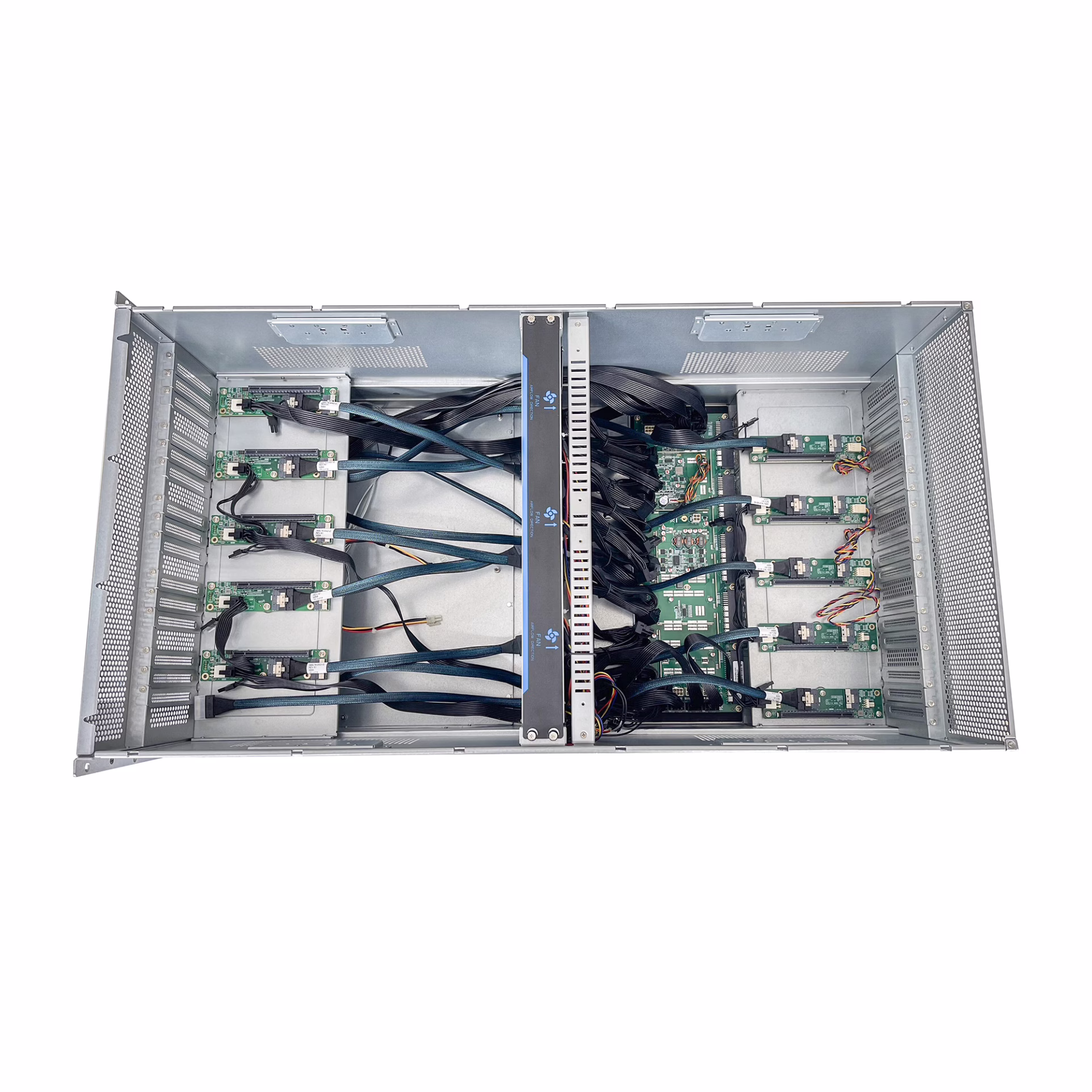

Flexible PCIe Gen5 Riser Options – Choose between PCI-E-16X Gen5 Riser Cable or PCI-E-16X Gen5 Riser with MCIO Cable for optimal GPU connectivity.
Durable Industrial-Grade Build – Made with Baosteel SGCC 1.0–1.2mm steel for strength and long-lasting performance.
Tool-Free Access & Maintenance – Easy-to-use front panel with USB 3.0 ports, power/reset switches, and indicator lights for power, storage, and network status.

Artificial Intelligence & Deep Learning – Ideal for training and inference workloads requiring high GPU parallelism.
High-Performance Computing (HPC) – Perfect for scientific simulations, engineering analysis, and large-scale data processing.
3D Rendering & Video Production – Supports professional rendering farms and high-end content creation workflows.
Cloud Gaming & Virtualization – Capable of hosting multiple virtualized GPU instances for cloud-based gaming platforms.
Blockchain & Cryptocurrency Mining – Configurable for large-scale GPU mining farms.
Big Data Analytics – Suitable for real-time data analysis and large-scale data modeling.
Research & Academic Labs – Used in universities and research centers for computational research and AI experiments.

Specification

Specification
Product Model	OCG7870-10H4-R
Product Name	10U GPU Server Chassis
Motherboard Support	AsrockROME2D32GM-2T/AsrockGENOA2D24G-2L-R101/ EEB(12"13”)/ CEB(12"10.5”)/ ATX(12"*9.5”)/ Micro ATX
Front hard drive	Supports 4* 2.5-inch SAS/SATA direct-plug or hot-plug hard disks
Power Supply Suppor	4+1,3+2, 2+2, 3+1 CRPS redundant power supply
Cooling System	Standard Configuration: Center 88038, rear 312038 Fans, Optional Configuration: Center 88056, Rear 58038 fans
Front Panel Interface	Power Button Switch/ Reset Button Switch/ USB3.0*2
Indicator Light	Power Indicator/ Hard Disk Indicator/ 2*Network Connection Indicator
GPU Support	Support 10-Card 4090 GameCard
Expansion Slot	Select either the PCI-E-16X Gen5 Riser Cable or the PCI-E-16X Gen5 Riser with MCIO Cable.
Guide Rail	Optional
Product Material	Baosteel SGCC1.0-1.2mm
Chassis Dimension	870435308mm
