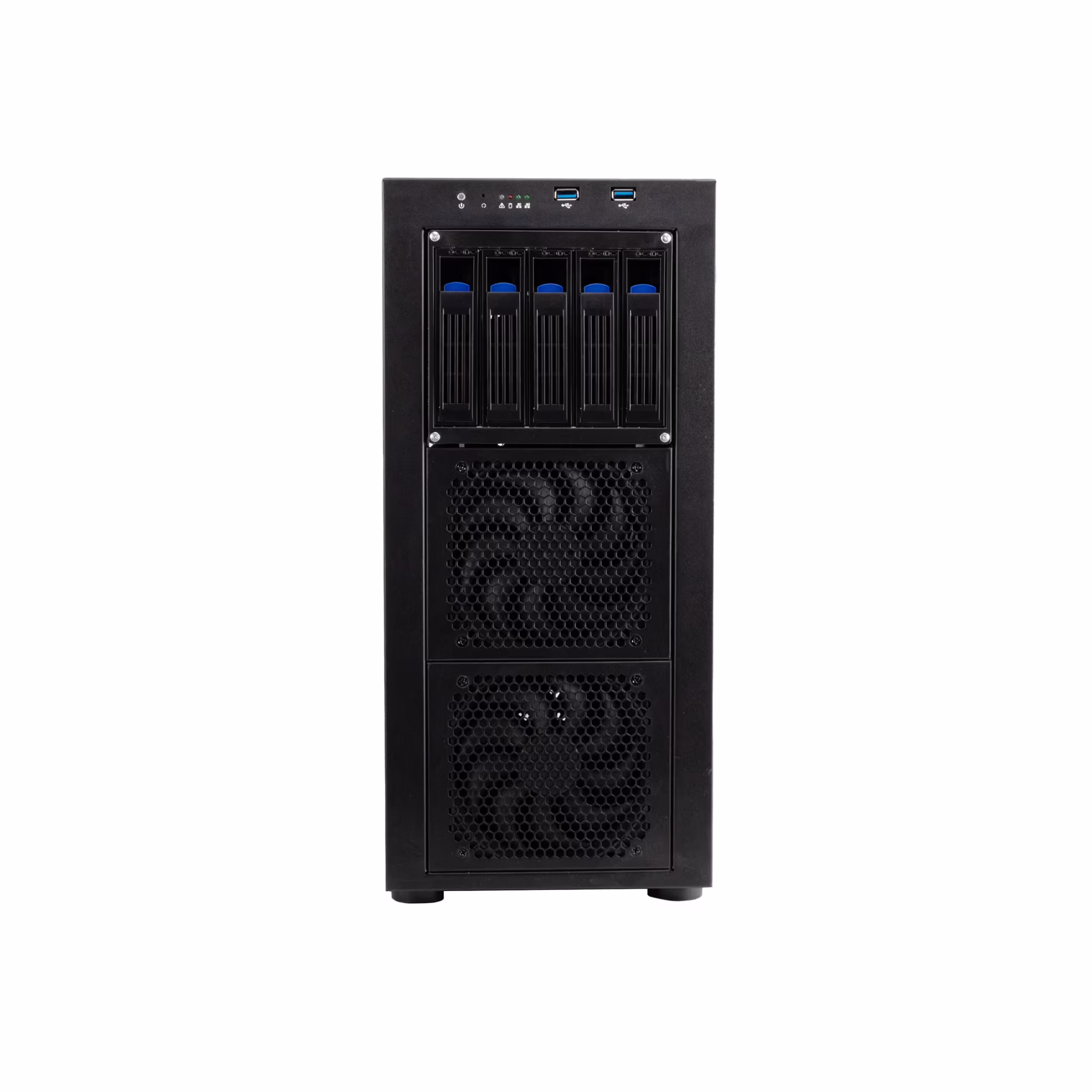

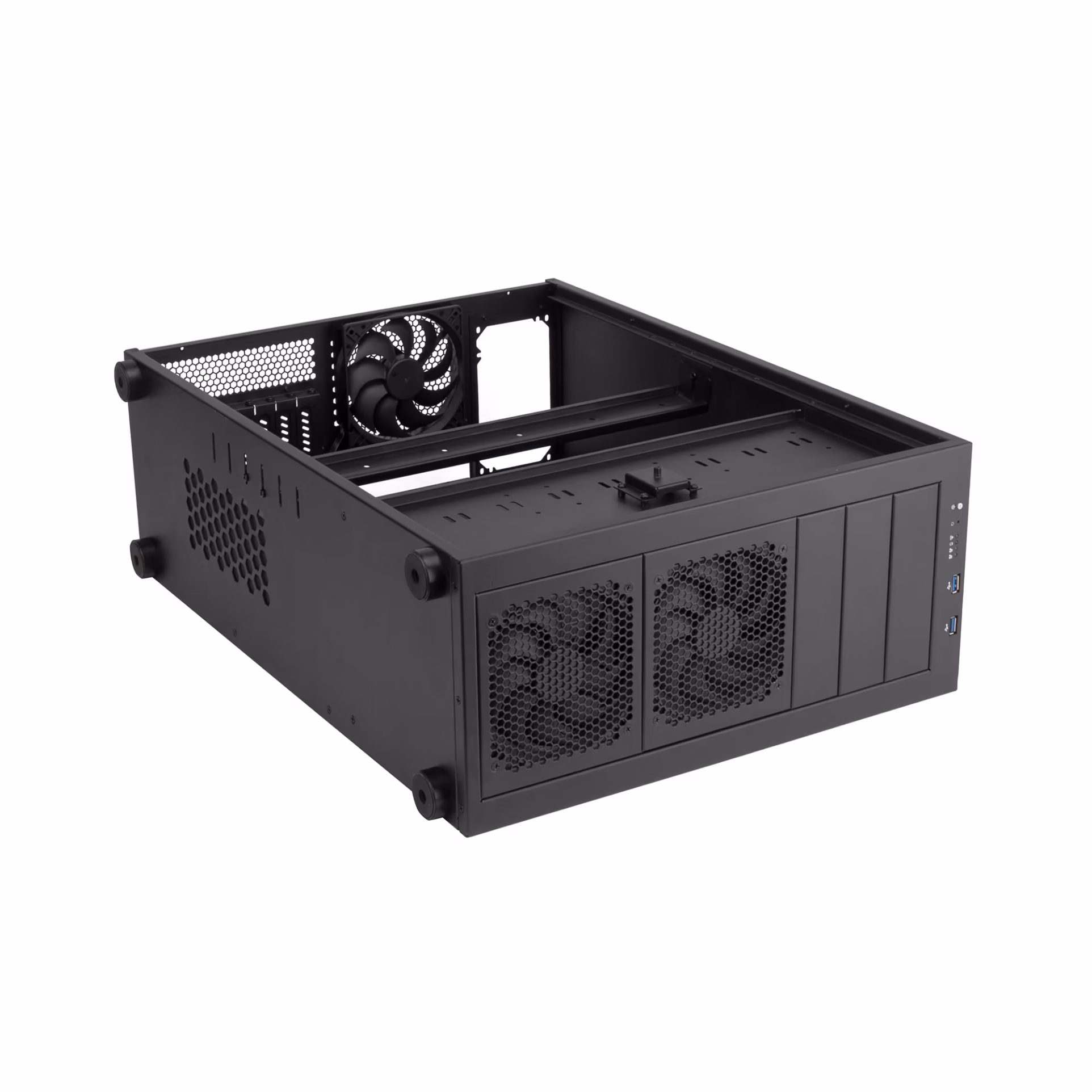

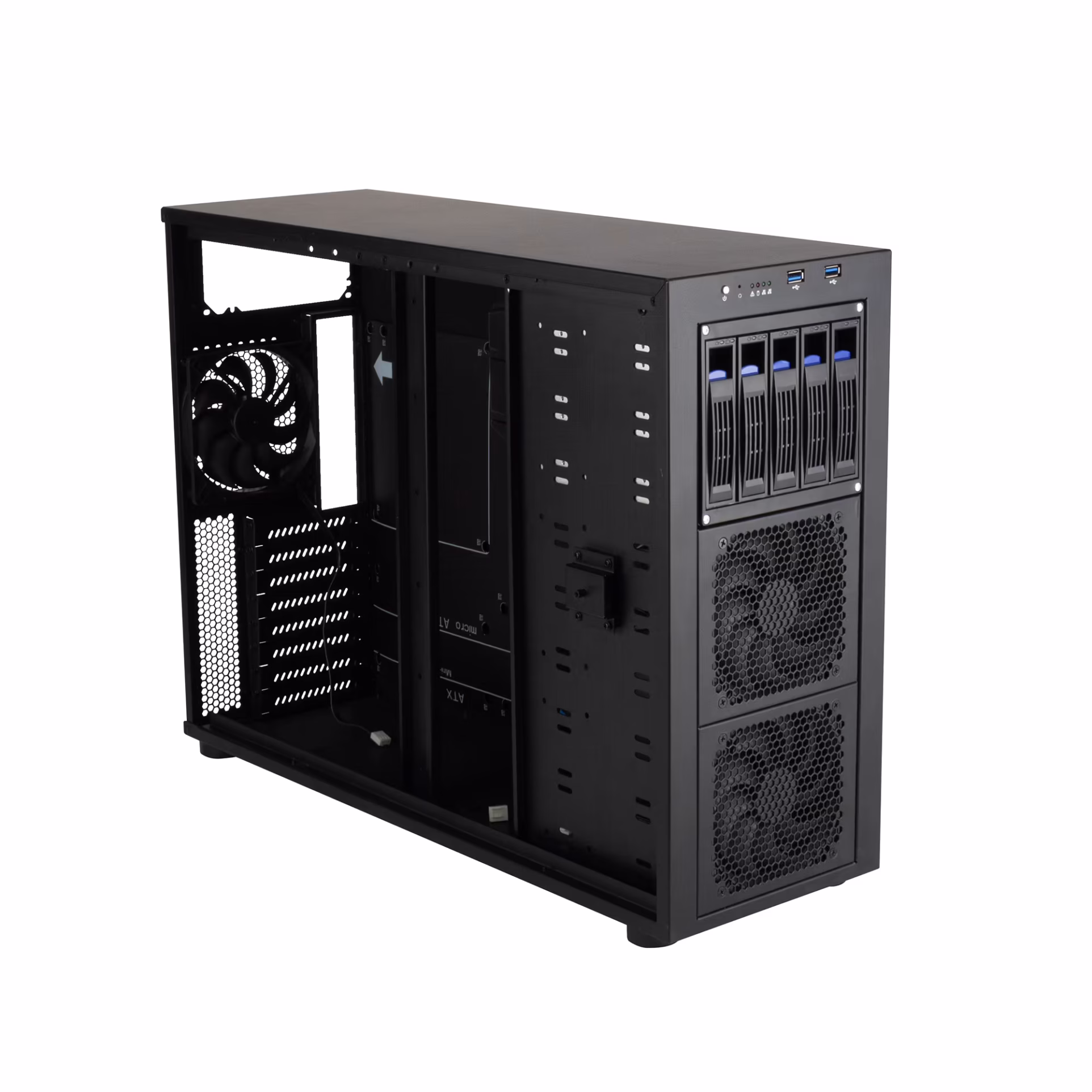

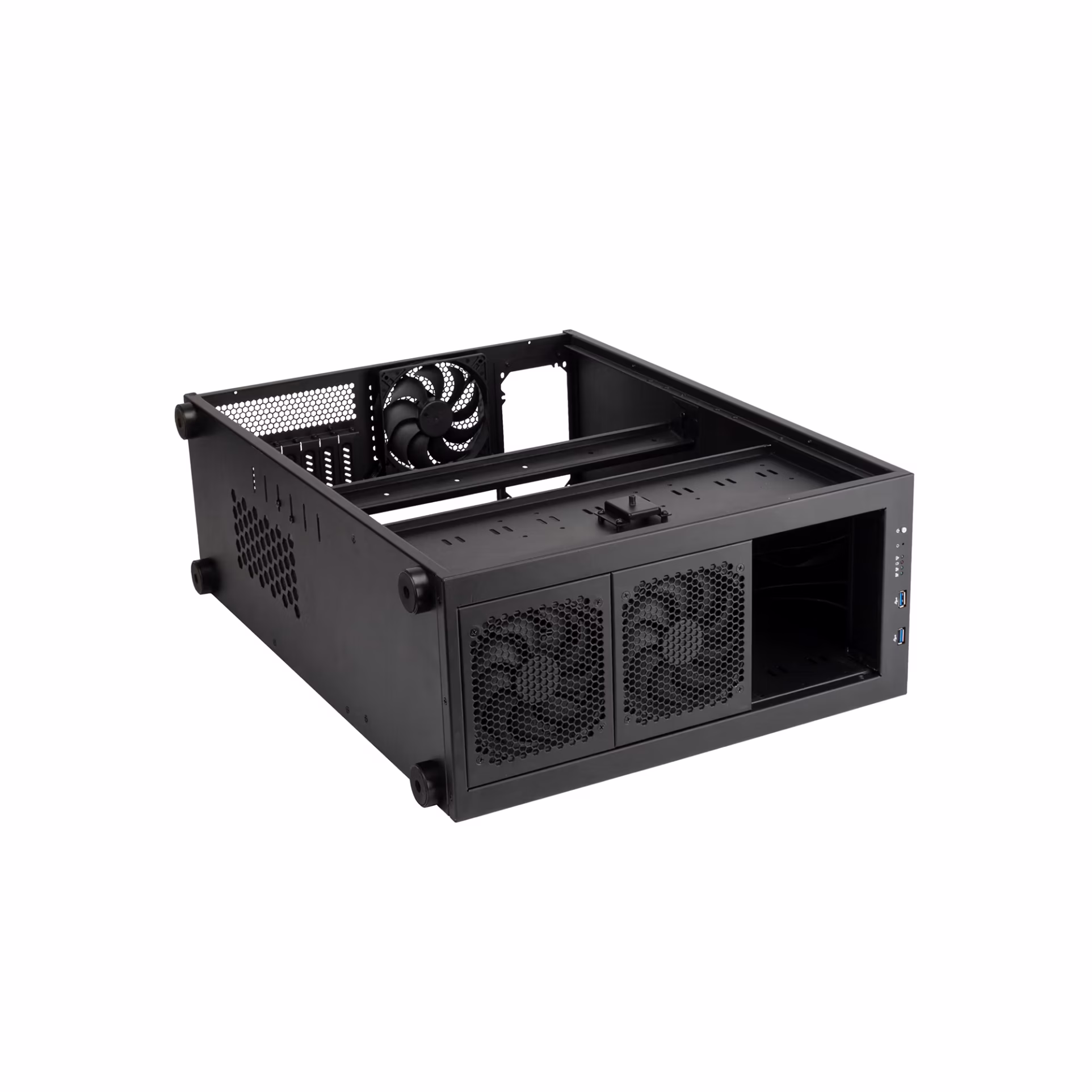

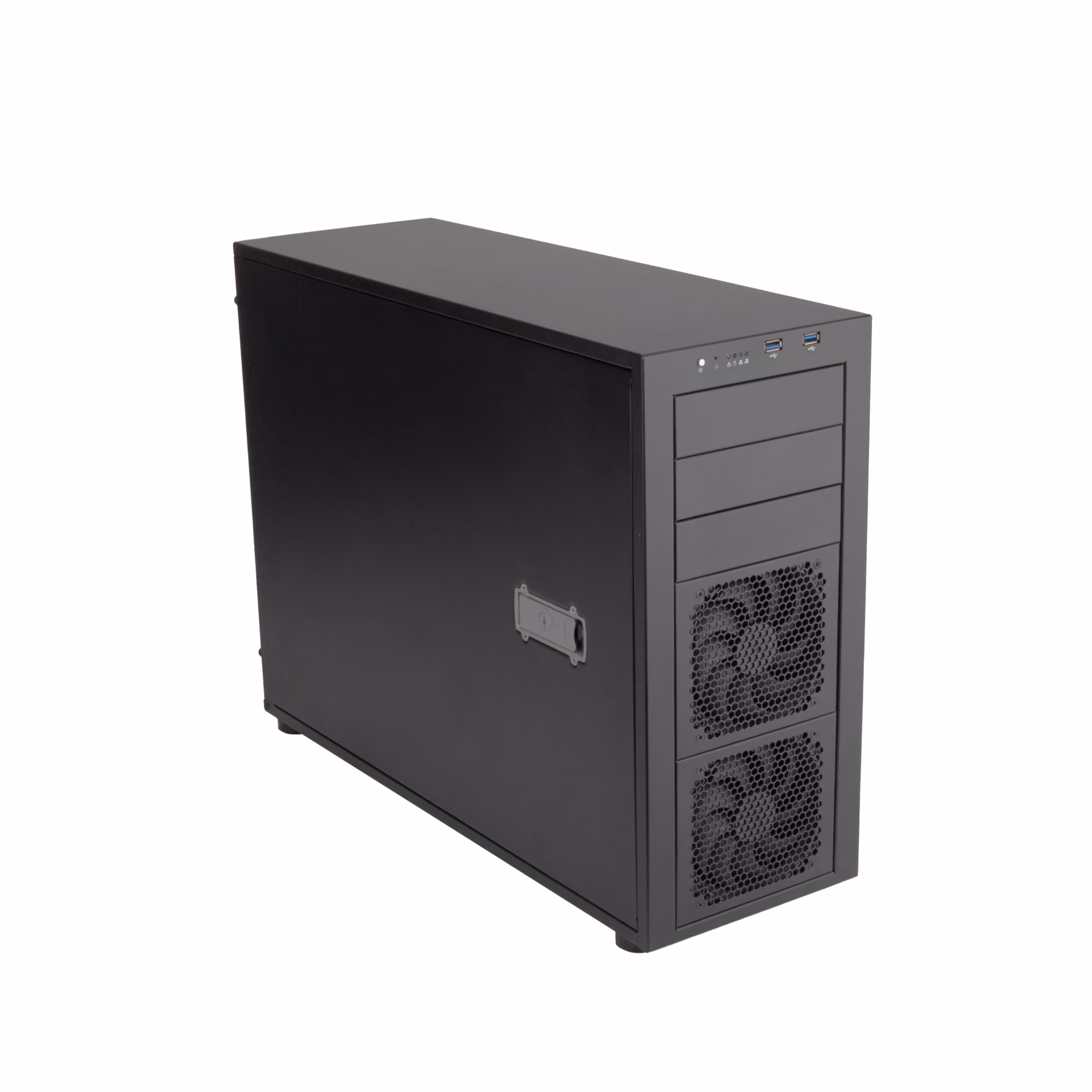

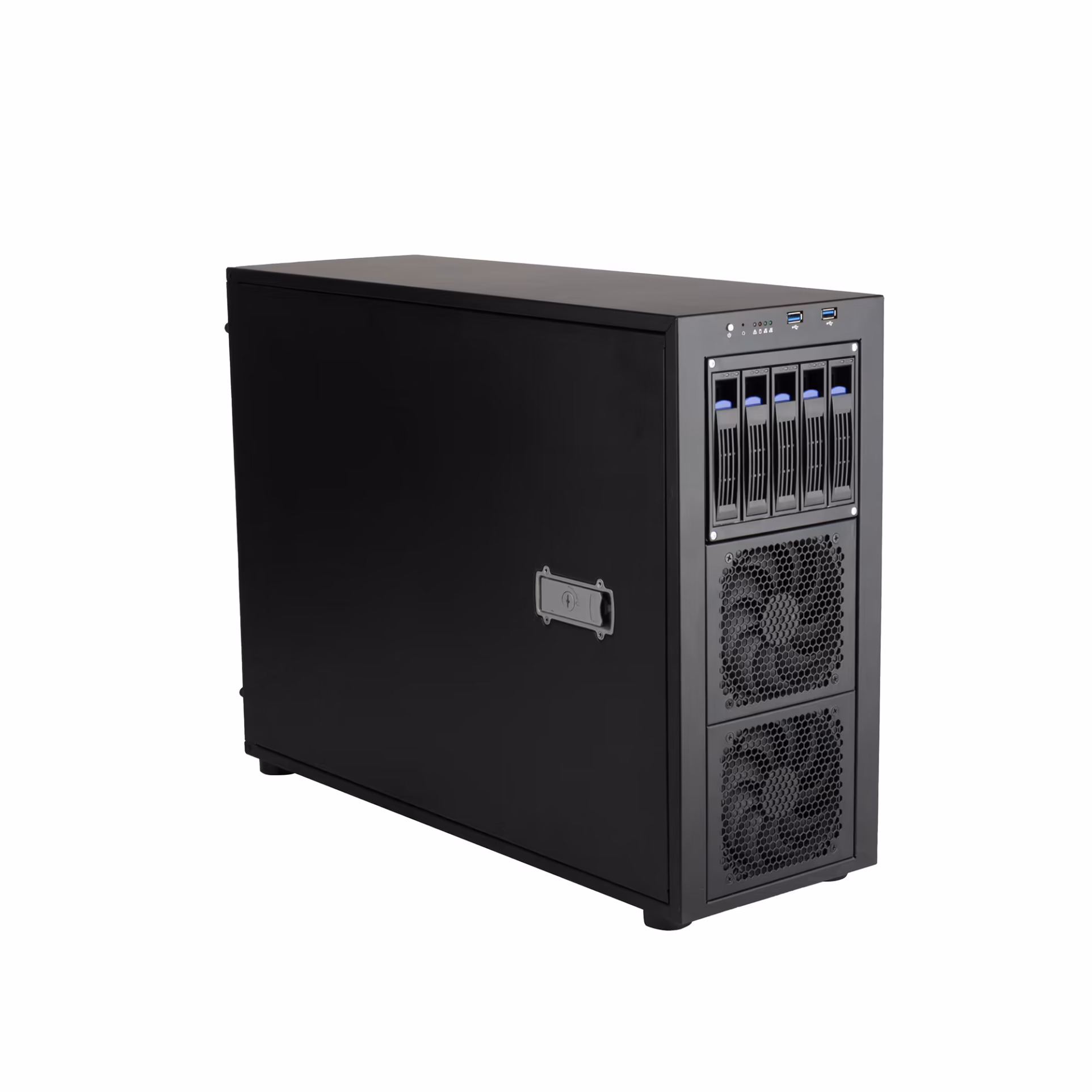

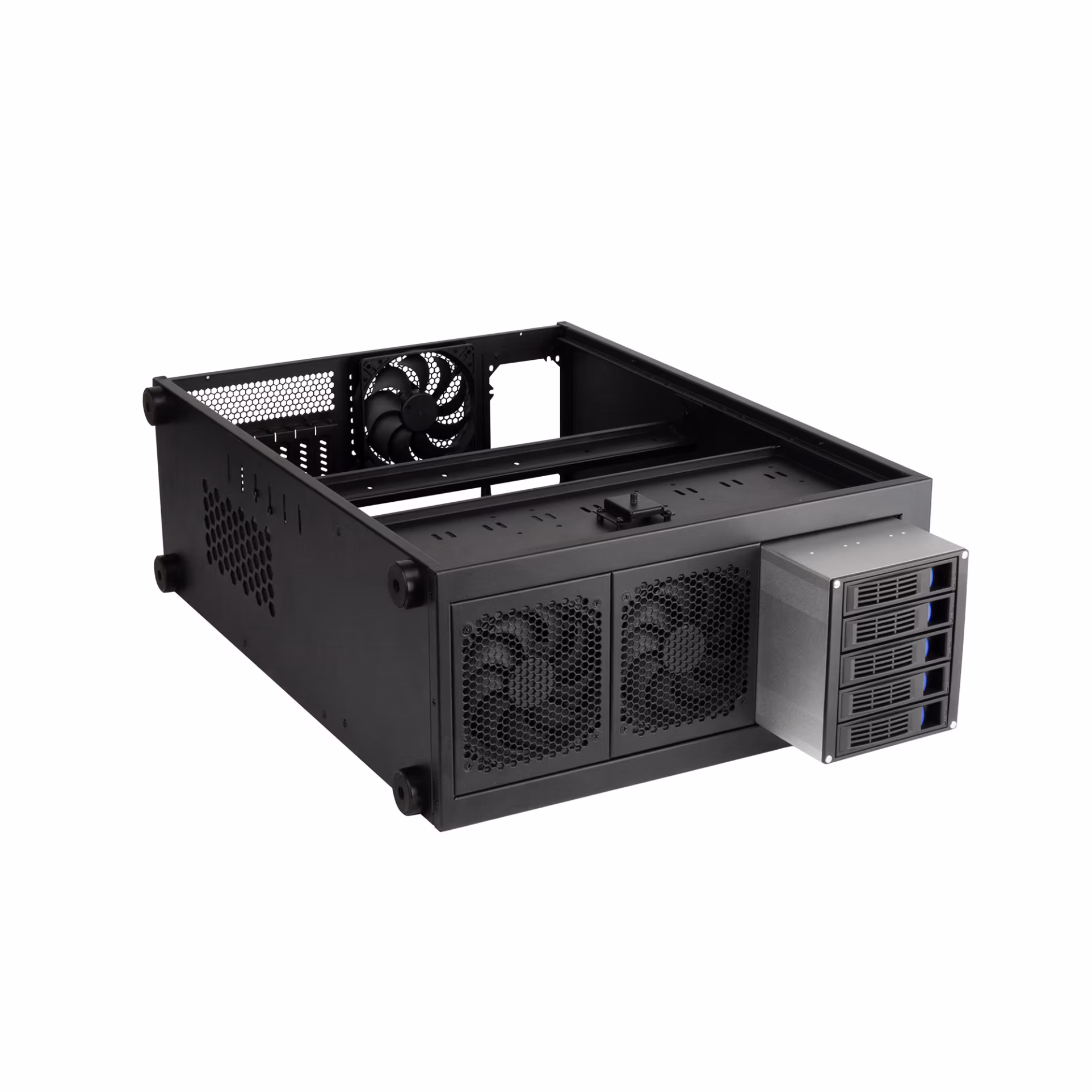

OCTR-4P580-H
4.5U tower-rack chassis for storage and workstation builds.
- 580 mm depth with 1.2 mm SGCC steel construction
- EEB, ATX, Micro-ATX and ITX motherboard support
- Configurable for up to 15 × 3.5-inch HDDs
- 7 × full-height PCIe slots for expansion
Please include your product model, required quantity, and any customization needs.
01 / OVERVIEW
Product overview
The OCTR-4P580-H is a high-performance 4.5U rackmount chassis designed for versatile applications that require both workstation-class expandability and rackmount deployment. With its 580mm depth, 200mm height, and standard 19-inch (434mm) rack width, this hybrid chassis delivers outstanding compatibility for data centers, industrial environments, labs, and edge-computing installations.
Built with 1.2mm Taiwan Sinosteel SGCC steel, the chassis provides exceptional structural rigidity, anti-corrosion durability, and long-term reliability for enterprise workloads. Its design supports EEB / ATX / microATX / Mini-ATX / ITX motherboards, making it ideal for high-density storage servers, GPU workstation setups, and multi-purpose computing nodes.
⭐ Key Features
✔ Flexible Motherboard Support
Compatible with EEB (12″×13″), ATX, Mini-ATX, Micro-ATX, and ITX motherboard sizes, providing wide configuration flexibility for servers, workstations, and industrial PCs.
✔ High Storage Capacity
Supports 9× optical drives or configurable for up to 15 × 3.5″ HDDs
Ideal for NAS, surveillance storage, media servers, and data-intensive applications
⭐ Typical Application Scenarios
1. Data Storage & NAS Systems
Ideal for small to mid-size storage servers, archival systems, or media storage solutions requiring up to 15 × HDDs.
2. GPU Workstations
With 7 × full-height PCIe slots, it can host GPUs, AI accelerators, or high-performance computing cards.
3. Industrial & Automation Control Systems
Its rugged SGCC steel construction is suitable for factory environments, industrial computing, and automation servers.
4. Edge Computing & Micro Data Centers
Perfect for telecom cabinets, IoT gateways, AI inference nodes, and on-site processing servers.
5. Networking or Firewall Appliances
Expandable architecture supports NICs, HBA cards, and other network acceleration hardware.
6. Home Lab / Enthusiast Server Builds
A flexible tower-rack convertible design makes it ideal for enthusiasts needing a scalable, professional-grade chassis.
02 / SPECIFICATIONS
Technical specifications
Please confirm the selected configuration and included components with our team before ordering.
| Model | OCTR-4P580-H |
| Form Factor | 4.5U rackmount |
| Material | Taiwan sinosteel SGCC 1.2mm |
| MB Form Factor | EEB(12"×13")/ATX(12"×9.6")/Mini-ATX(11.2"*8.2")/Microatx(9.6"×9.6")/ITX |
| PSU Form Factor | Supports standard ATX power supplies and various other standard power supply bays (customizable for various power supply types). |
| HDD Support | Supports 9* CD-ROM or can be replaced with 15 × 3.5"HDD |
| Expansion Slot | Supports 7 × Full-Height PCI Card |
| SGPIO | No |
| System Cooling Fans | Built-in 4 × 12025 fan slots and 2 × rear-mounted 8038 fans(optional) |
| Smart Fans Speed Contol | NO |
| Airduct | Customization is supported, and optional materials (SGCC/PC/ABS/PE, etc.) are available. |
| Indicators | PowerON/OFFx1,HDDx1,NICx2,Power Aarmx1 |
| Front panel control | PowerON/OFFx1,System resetx1,ID Switchx1,USB2.0 *2/USB3.0 *2 |
| Rails | Simple slide rail (optional) |
| Dimensions | 580* 434* 200mm |
| Carton size | 745* 555* 315mm |
| Net Weigh | 15KG |
| Gross Weigh | 20.2KG |
