OCG5870A-5H4-R
5U multi-GPU chassis with standard motherboard compatibility.
- Supports up to 10 double-width GPUs
- EEB / CEB / ATX / Micro-ATX motherboard support
- PCIe Gen5 riser and MCIO connection options
- 4 × front 2.5-inch drives and redundant CRPS power options
Please include your product model, required quantity, and any customization needs.
01 / OVERVIEW
Product overview

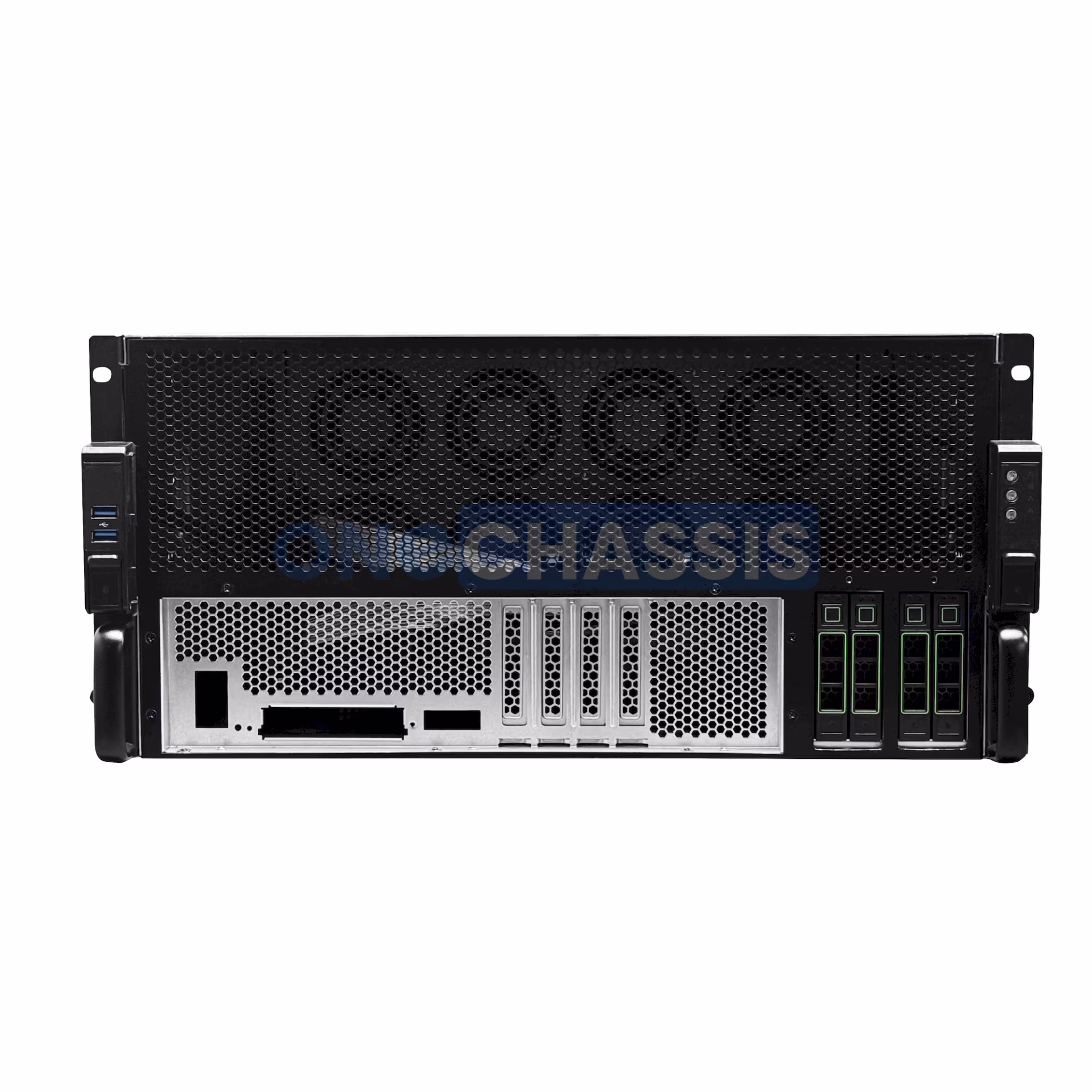

OCG5870A-5H4-R – 5U Multi-GPU Server Chassis
The OCG5870A-5H4-R is a purpose-built 5U chassis for AI computing, deep learning, and GPU-intensive workloads. It supports up to 10 double-width GPUs, delivering exceptional expandability, cooling, and reliability.
Key Features
Multi-GPU Support – Up to 10 double-width GPUs (ideal for RTX 4090 and similar setups)
Motherboard Compatibility – Supports EEB, CEB, ATX, and MicroATX
Redundant Power Options – CRPS architecture (4+1, 3+2, 2+2, 3+1) for high stability
Efficient Cooling – Standard 8 × 8038 front + 3 × 12038 rear fans (upgrade options available)
Flexible Storage – 4 × 2.5″ SAS/SATA hot-swap or direct-plug drives
PCIe Gen5 Ready – Supports 16X Gen5 riser and MCIO cable configurations
Durable Build – Baosteel SGCC steel, 870 × 435 × 220 mm
Ideal For
AI training & inference • Deep learning • GPU rendering • HPC clusters • Big data • Virtualization • Crypto mining
02 / SPECIFICATIONS
Technical specifications
Please confirm the selected configuration and included components with our team before ordering.
| Specification | |
| Product Model | OCG5870A-5H4-R |
| Product Name | 5U GPU Server Chassis |
| Motherboard Support | EEB(12″*13”)/ CEB(12″*10.5”)/ ATX(12″*9.5”)/ MicroATX MAX |
| Front hard drive | Supports 4 × 2.5-inch SAS/SATA direct-plug or hot-plug hard disks |
| Power Supply Support | 4+1,3 +2, 2+2, 3+1 CRPS redundant power supply |
| Cooling System | Standard Configuration: Center 8 × 8038, rear 3 × 12038 Fans, Optional Configuration: Center 8 × 8056, Rear 5 × 8038 fans |
| Front Panel Interface | Power Button Switch/ Reset Button Switch/ USB3.0*2 |
| Indicator Light | Power Indicator/ Hard Disk Indicator/ 2*Network Connection Indicator |
| Expansion Slot | Support 5-Card4090 GameCard/ 6-Card Double-WidthGPU/ 8-CardDouble-WidthGPU/ 10-CardDouble-WidthGPU |
| Select either the PCI-E-16X Gen5 Riser Cable or the PCI-E-16X Gen5 Riser with MCIO Cable. | |
| Guide Rail | Optional |
| Product Material | Baosteel SGCC1.0-1.2mm |
| Chassis Dimension | 870*435*220mm |
Let’s discuss your configuration
Need drawings, compatibility confirmation, or an OEM/ODM quotation? Send us your project requirements.
