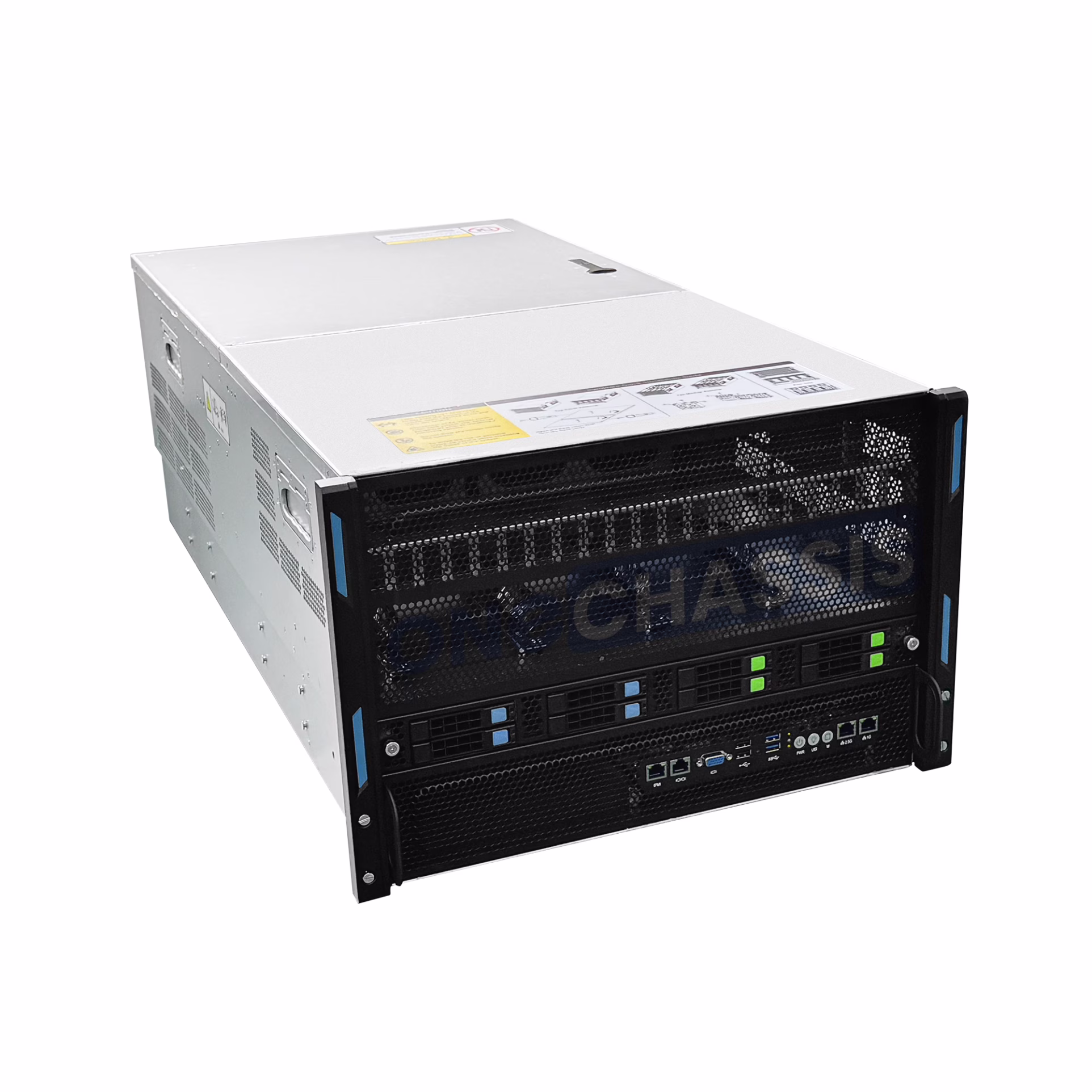

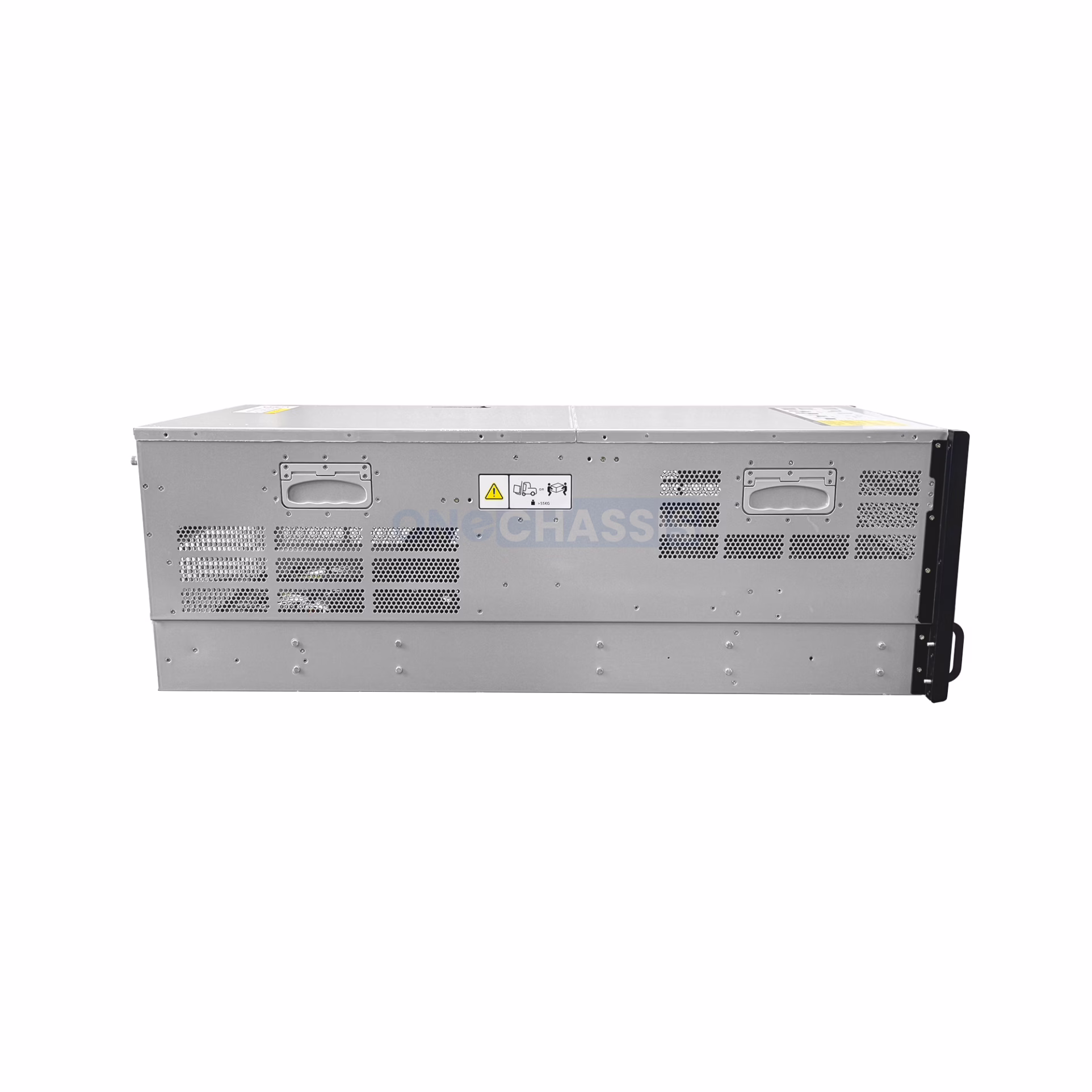

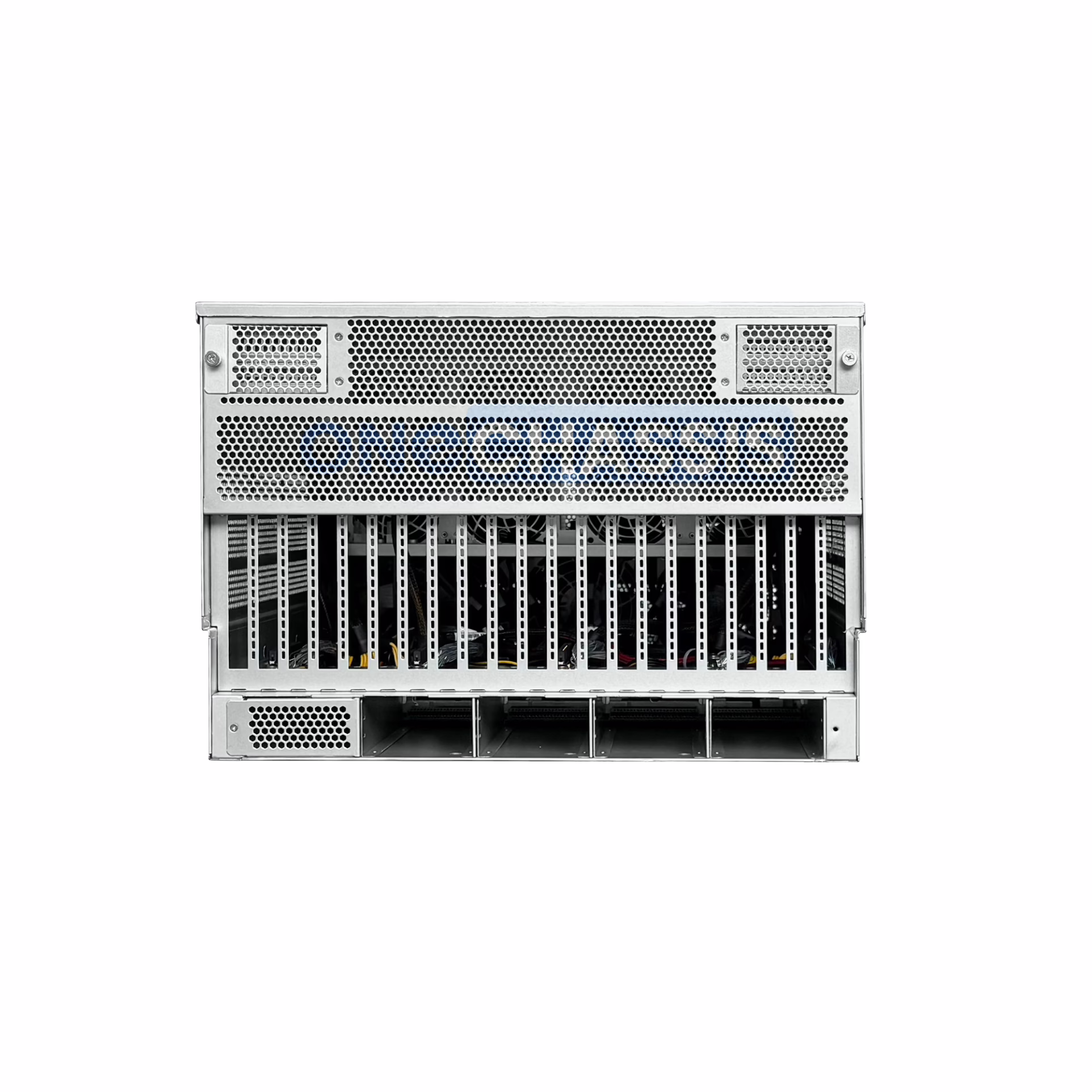

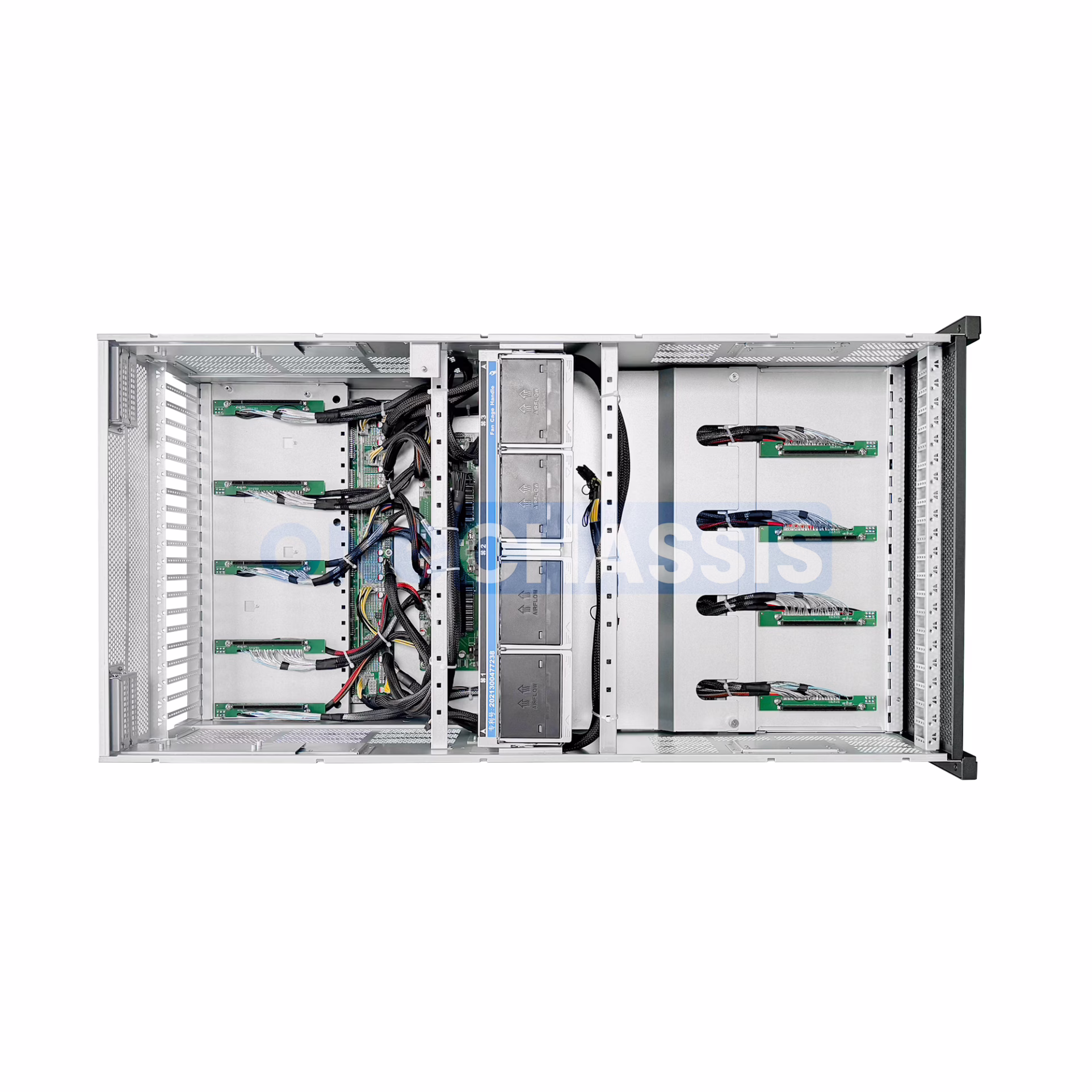

OCG7900A-8H8-L GPU server

OCG7900A-8H8-L

7U Multi-GPU Server Chassis for High-Density AI and HPC

إن OCG7900A-8H8-L is a 7U GPU server chassis purpose-built for demanding AI, deep learning, and high-performance computing (HPC) workloads. Supporting up to 10 dual-slot GPUs, PCIe Gen5, and efficient CRPS power supplies, this chassis delivers superior expandability and airflow for GPU-intensive environments.


Key Features

Support for 10 Double-Width GPUs

  • Compatible with up to 10× double-width GPUs

  • Card spacing: 85mm, maximum GPU length 360mm

  • Ideal for RTX 4090 or similar high-power GPUs

PCIe Gen5 Riser Options

  • Choose between:

    • PCI-E-16X Gen5 Riser Cable

    • PCI-E-16X Gen5 Riser with MCIO Cable

  • Ensures high bandwidth and flexible layout

Scalable Power Supply Support

  • يدعم CRPS redundant power in configurations:

    • 4+1, 3+2, 2+2, or 3+1

Robust Cooling System

  • Front: 8×8038 fans

  • Rear: 3×12038 fans, optional 5×8038 fans

  • Maintains stability under full GPU load

Flexible Motherboard Compatibility

  • EEB / CEB / ATX / MicroATX

  • Compatible with Asrock ROME and GENOA server boards

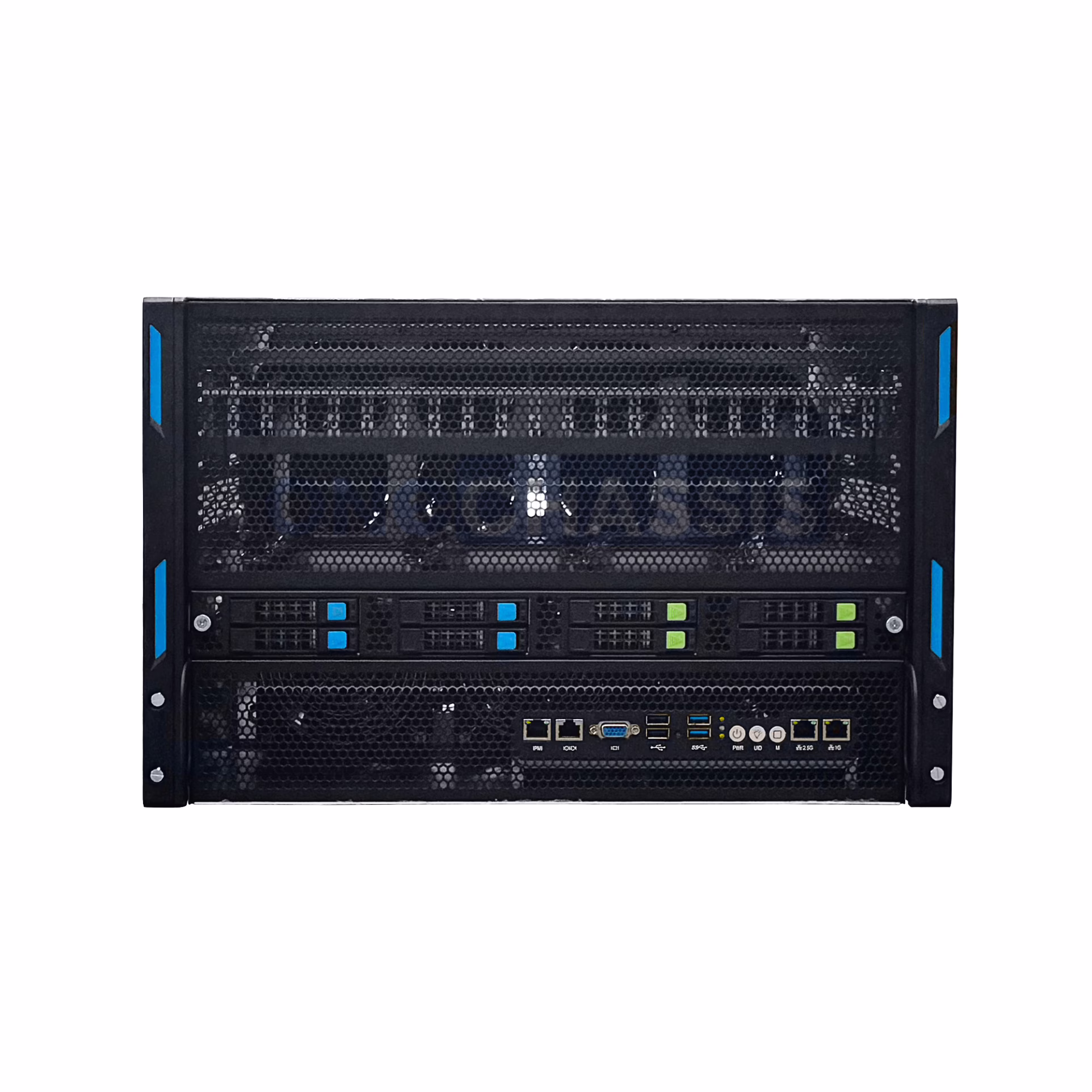

Storage & Front I/O

  • 4× 2.5” SAS/SATA hot-plug or direct-plug drives

  • Power/reset switches and dual USB 3.0 ports on front panel


التطبيقات

  • AI Model Training & Inference

  • Deep Learning Frameworks (e.g., TensorFlow, PyTorch)

  • High-Performance GPU Computing

  • Scientific Simulation & Visualization

  • 3D Rendering & Virtual Production

  • Crypto Mining & Blockchain Infrastructure

نموذج الاستفسار

OCG7900A-8H8-L




    تحميل الرسومات

    المواصفات

    المواصفات
    Product ModelOCG7900A-8H8-L
    Product Name7U GPU Server Chassis
    Dimension:900*447*308mm
    المادة:SGCC1.0mm
    SurfaceTreatment:Front panel and mounting ears coated in black
    Cooling Fan:3 hot-swappable 12038 fans, 8 hot-swappable 8056fans,supporting intelligent temperature control

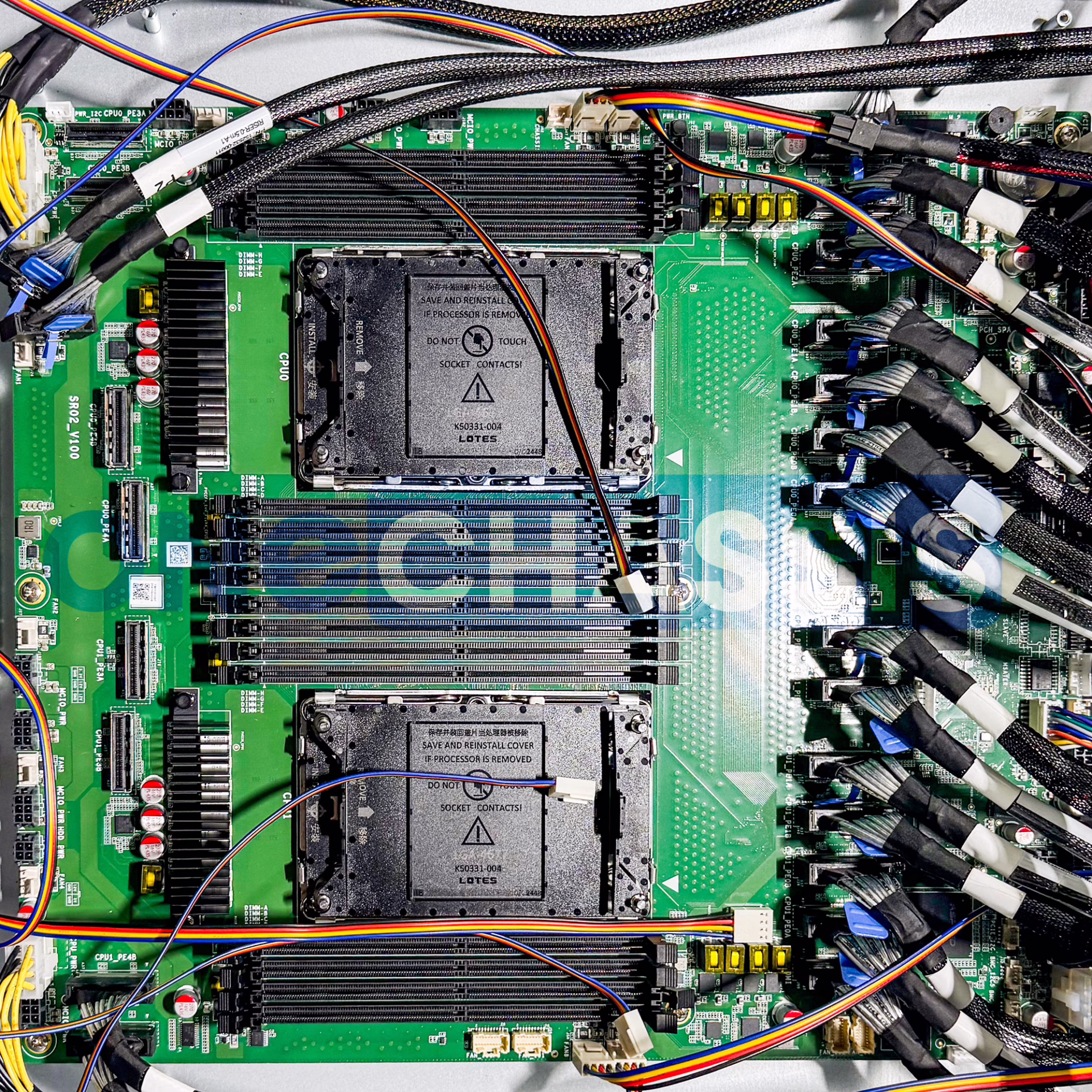

    CompatibleMotherboard:ROME2D32GM-2T,GENOA2D24G-2L+,TURIN2D24G-2L+/500W,and SP2C741032G-2L+ motherboards
    Maximum height for cooler:100mm
    HDD Backplane:NVMe backplane, compatible with U.2/SATA HDD/SSD
    HDD Bay:8 hot-swappable 2.5″ HDD/SsD bays
    Power supplySupport:Supports 5 CRPS module, supports N+ N redundancy/N+ l redundancy
    GPU slot :8×92mm or 10×85mm GPU spacing, up to 360mm length.
    GPU Riser:8 Gen5 GPU risers and accompanying cables
